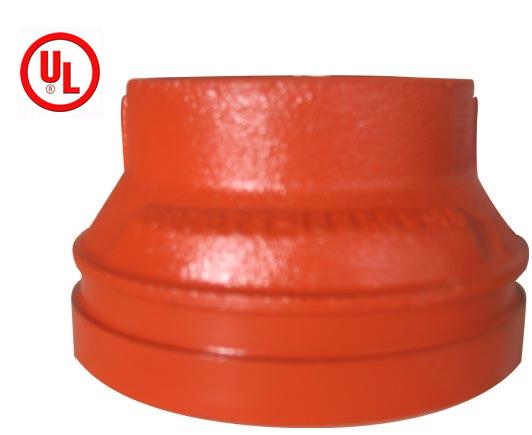

UL FM Eccentric Reducer

UL FM Eccentric Reducer

  • Product description: grooved pipe fittings,grooved pipe fittings manufacturers
  • INQUIRY

UL FM Eccentric Reducer   grooved pipe fittings

Fire Protection Valves--Grooved Piping System

UL FM Eccentric Reducer

UL FM Tee, UL FM Cross, UL FM Reducer, UL FM Cap
Size Pipe O.D mm/in Tee Cross Reducer
grooved 		Reducer
threaded 		Cap
Standard Short Standard Short
L L L L L L L
DN
in 		mm
in 		mm
in 		mm
in 		mm
in 		mm
in 		mm
in 		mm
in 		mm
in
25
1      		33.7
1.327 		57
2.244 		57
2.244 		57
2.244 		57
2.244 		64
2.52 		64
2.52 		22
0.866
32
1¼ 		42.4
1.669 		70
2.75 		60
2.36 		70
2.75 		60
2.36 		64
2.52 		64
2.52 		22
0.866
40
1½ 		48.3
1.900 		70
2.75 		60
2.36 		70
2.75 		60
2.36 		64
2.52 		64
2.52 		22
0.866
50
2 		60.3
2.375 		83
3.267 		70
2.75 		83
3.267 		70
2.75 		64
2.52 		64
2.52 		22
0.866
65
2½ 		73.0
2.875 		95
3.74 		76
2.99 		95
3.74 		76
2.99 		64
2.52 		64
2.52 		22
0.866
65
3OD 		76.1
3.000 		95
3.74 		76
2.99 		95
3.74 		76
2.99 		64
2.52 		64
2.52 		22
0.866
80
3 		88.9
3.500 		108
4.25 		86
3.385 		108
4.25 		86
3.385 		64
2.52 		64
2.52 		22
0.866
100
4 		114.3
4.500 		127
5 		102
4.016 		127
5 		102
4.016 		76
2.99 		76
2.99 		25
0.99
125
5.5OD 		139.7
5.500 		140
5.5 		122
4.803 		140
5.5 		122
4.803 		89
3.504 		89
3.504 		25
0.99
150
6.5OD 		165.1
6.500 		165
6.5 		140
5.511 		165
6.5 		140
5.511 		102
4.016 		102
4.016 		25
0.99
150
6 		168.3
6.625 		165
6.5 		140
5.511 		165
6.5 		140
5.511 		102
4.016 		102
4.016 		25
0.99
200
8 		219.1
8.625 		197
7.75 		175
6.89 		197
7.75 		175
6.89 		127
5 		127
5 		30
1.181
